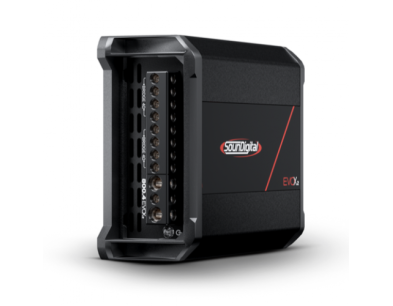

The 800.4 EVOX2 is a compact, modern amplifier that delivers 800W RMS of power over 4 channels.

The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.

General Specifications

800.4 EVOX2 – 4 OHMS   Power @ 2Ω: 4 X 200W

                                           Power @ 4Ω: 4 X 132W

                                          Bridge Power @ 4Ω: 2 X 400W

                                          Bridge Power @ 8Ω: 2 X 264W

Frequency Response (-3dB): 5Hz ~22kHz

Low Pass Filter: 45Hz ~ 850Hz

High Pass Filter: 45Hz ~ 850Hz

Operating Voltage: 8V ~ 16V

SNR: 91dB

Input Sensitivity: 0.2V ~4V

Current Draw (Music): 35A

Current Draw With Resistive Load: 70A

Total Efficiency: 80%

Damping Factor: 200

Power Cable: 10mm² (7 AWG)

Audio Output Cable: 2 x 1.5mm (15AWG)

Recommended Fuse (Music): 40A

Recommended Battery (Minimum): 60Ah

Width: 4.4 in / 11,3 cm

Length: 5.8 in / 14,8 cm

Height: 2 in / 5,1 cm
